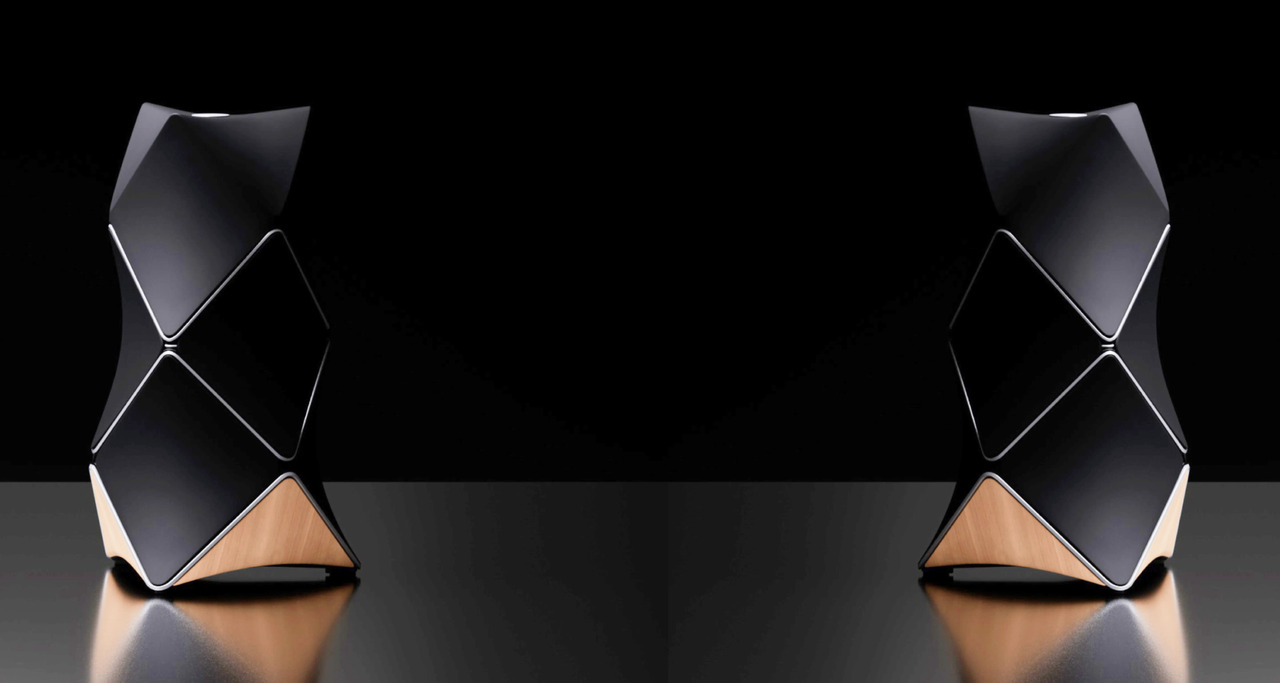

Beolab 90
Beolab 90, exceptional floorstanding loudspeakers.
Beolab 90 floorstanding loudspeakers deliver powerful performance and advanced acoustic features. High-end floorstanding loudspeakers use Scandinavian aluminium and oak to adapt to living spaces and listening preferences. Beolab 90 loudspeakers provide consistent sound for every listening session.
Technical specifications
Sound
| Recommended room size | 30–200 m², 300–2000 ft² |
|---|---|
| Speaker configuration | Per speaker: 7 x 1-inch Scan-Speak Illuminator tweeters, 7 x 4 ½-inch Scan-Speak Illuminator midrange drivers, 3 x 10-inch Scan-Speak Discovery woofers, 1 x 13-inch Scan-Speak Revelator front-facing woofer |
| Amplification | Per speaker: 7 x Bang & Olufsen ICEpower AM300-X for tweeters, 7 x Bang & Olufsen ICEpower AM300-X for midrange drivers, 3 x Heliox AM1000-1 for woofers, 1 x Heliox AM1000-1 for the front-facing woofer |
| Frequency range | <12 – >43,000 Hz |
| Maximum sound pressure level (SPL) at 1 m | Per pair: 126 dB SPL |
| Bass reproduction capability | Per pair: 118 dB SPL |
| Advanced sound features | Adaptive bass linearisation, advanced Active Room Compensation, five-way sound beam direction control, sound beam width control, thermal protection. |
Design
| Designer | Noto GmbH |
|---|---|
| Materials | Aluminium, fabric, wood. |
| Dimensions | 73.5 (W) x 125.3 (H) x 74.7 (D) cm |
| Weight | Per speaker: 137 kg |
Power
| Power supply | 100–240 V, 50/60 Hz mains cable |
|---|
Connectivity
| Wireless connections | Wireless Power Link (24-bit/48 kHz), WiSA (24-bit/96 kHz) |
|---|---|
| Physical connections | Primary speaker: 1 x RCA (L/R), 1 x MIC / IR, 1 x Power Link (RJ45), 1 x S/P DIF (24-bit / 192 kHz), 1 x XLR (L/R) (fully balanced), 1 x Optical (24-bit / 96 kHz), 1 x USB-B (audio) (24-bit / 192 kHz), 1 x USB-A, 2 x Digital Power Link, 1 x Digital Power Link / Ethernet, 1 x power connector. Secondary speaker: 1 x USB-B (audio), 1 x USB-A, 3 x Digital Power Link, 1 x power connector |
