Beosound Theatre

Beosound Theatre, a soundbar that challenges convention and captivates the senses.

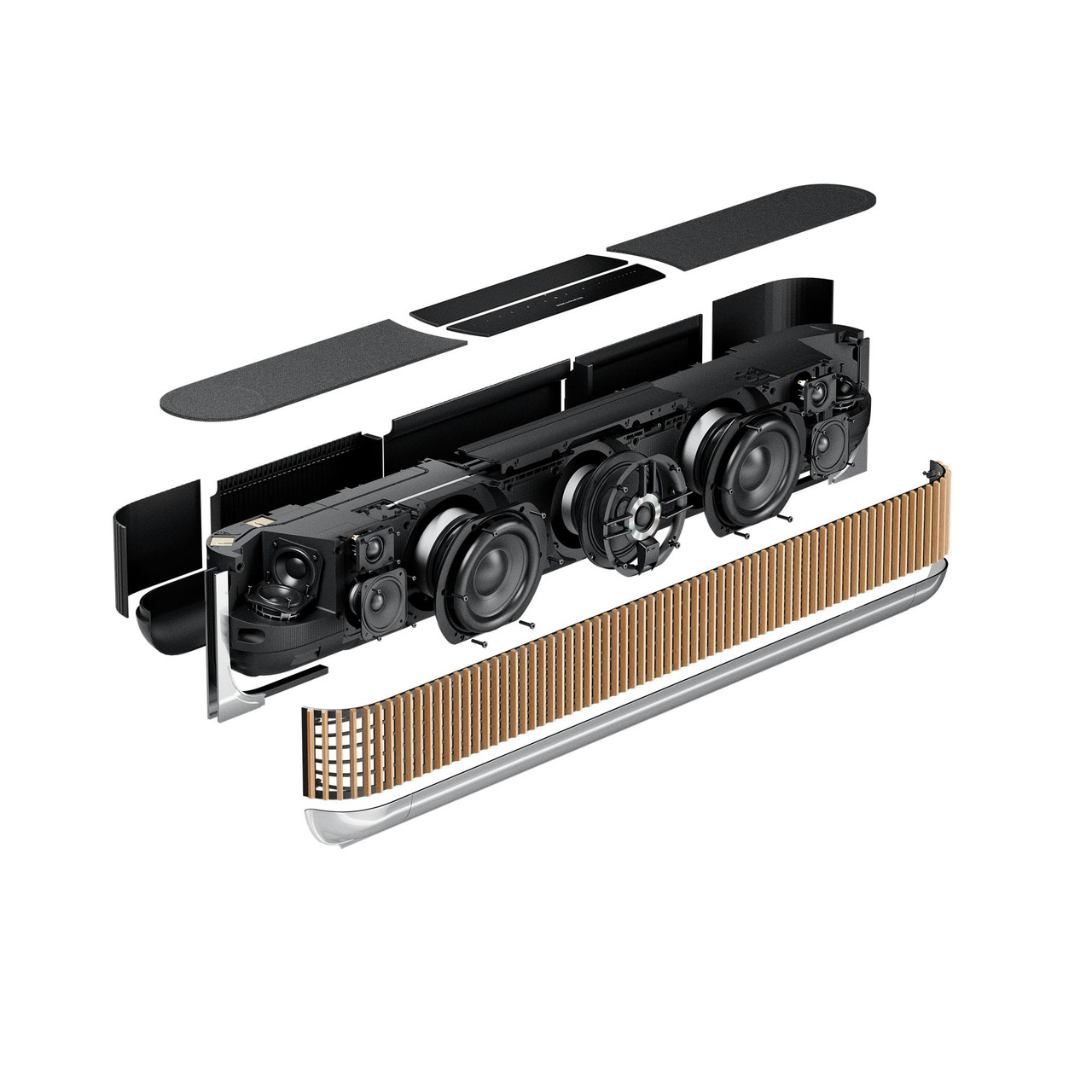

Four patented acoustic innovations in one elegant soundbar. Dolby Atmos surround sound, twelve specially designed speakers and broad TV compatibility help the soundbar serve several generations. Replaceable speaker covers and multiple placement options allow the soundbar to develop with your style for years.

What comes with Beosound Theatre?

• Speaker cover.
• HDMI cable
• LAN cable
• Power cable
• Wall bracket for the soundbar.
• Table stand for the soundbar.
• Decorative covers
• Installation guide
• Drilling template for wall mounting the soundbar.
• Microphone for automatic RoomSense setup
• Tool for removing the speaker cover

Beosound Theatre technical specifications

Sound.

Recommended room size	15–60 m², 100–600 ft²
Speaker configuration.	12 speakers: 2 x 1-inch tweeters, 4 x 2.5-inch full-range speakers, 2 x 3-inch midrange speakers, 1 x 5.25-inch midrange speaker + 1 x 1-inch tweeter for a custom coaxial centre speaker, 2 x 6.5-inch custom woofers
Amplification.	12 power amplifiers: 10 x 60 W amplifiers for the centre channel, left/right/up/side outputs, and 2 x 100 W amplifiers for the bass outputs. Total: 800 W
Frequency range	28 Hz – 23,000 Hz
Maximum sound pressure level at 1 m	112 dB SPL
Bass performance.	94 dB SPL
Advanced sound features.	Built-in 7.1.4 Dolby Atmos decoding and post-processing with individual settings through the proprietary True Image upmixing/downmixing algorithm. Advanced bass management. Adaptive bass linearisation. Thermal protection.
RoomSense	Automatic speaker setup with an external microphone: speaker level and distance, speaker role, speaker-position compensation from 30–10,000 Hz, and room-resonance compensation from 30–200 Hz.
HDMI audio format.	Dolby Atmos support: Dolby Digital TrueHD, Dolby Digital plus 7.1 (including DD5.1), Dolby Atmos, Dolby MAT, multichannel PCM 7.1, MPEG-2 AAC, MPEG-4 HE-AAC.
Customisable sound equaliser	Presets are available with full customisation through the Bang & Olufsen app

Design

Designer	Noto GmbH
Materials	Aluminium, wood / fabric, fabric, polymer.
Dimensions	Table stand for the soundbar: 19.7 (H) x 15.7 (D) x 122.2 (W) cm. Wall bracket for the soundbar, close position: 18.9 (H) x 15.8 (D) x 122.2 (W) cm.
Weight	18 kg

Power

Power consumption	Typical 120 W
Power supply	Power cable, 100–240 V, 50/60 Hz

Connectivity

Bluetooth version	Bluetooth 5.1 (BLE and EDR)
Bluetooth codecs	Android: SBC; iOS: SBC, AAC.
Wi-Fi	Dual-band Wi-Fi 5 (2.4 and 5 GHz), IEEE 802.11 b/g/a/n/ac.
Streaming services.	Apple AirPlay, Spotify Connect, Google Cast, TIDAL Connect, B&O Radio, Deezer, QPlay 2.0.
Beolink Multiroom	Connect multiple Bang & Olufsen speakers to expand your music experience.
Beolink Surround	Connect additional speakers to your system through a wired or wireless connection for true surround sound.
Wireless connections	8 x Wireless Power Link/WiSA, 4 x Digital Power Link (wireless or wired, Bang & Olufsen speakers based on the Mozart platform).
Physical connections	Soundbar inputs: 3 x HDMI inputs with CEC input, 1 x HDMI eARC with 4K 120FPS / 8K 60FPS / 40 Gbps passthrough, 4 x 1 Gbps Ethernet (one port is intended to connect an LG OLED TV for integrated control through Beoremote One and the Bang & Olufsen app), 1 x 3.5 mm jack, 1 x USB-C. Soundbar outputs: 8 x Power Link (RJ45), 4 x Digital Power Link (wireless or wired, Bang & Olufsen speakers based on the Mozart platform).
Remote controls	Integrated system control, including an LG OLED TV: Bang & Olufsen app, Beoremote One BT, Beoremote Halo, and TV remote control commands (volume, mute, power, standby) through HDMI ARC.
Controls on the device	Yes
Peripheral device control	Built-in peripheral device/set-top box controller for controlling two devices, allowing set-top boxes to be controlled with a Bang & Olufsen remote control.
