Beovision Theatre

Beovision Theatre — A television for a cinematic home theatre.

Beovision Theatre is a complete audio and video system designed for immersive film viewing. Dolby Atmos surround sound, an LG 4K OLED screen and an updatable design make Beovision Theatre a distinctive home cinema solution. Beovision Theatre is available in 55”, 65” and 77” sizes, with several stands and wall brackets.

Technical specifications

Sound.

Recommended room size	10–60 m², 100–600 ft²
Speaker configuration.	12 speakers: 2 x 1-inch tweeters, 4 x 2.5-inch full-range speakers, 2 x 3-inch midrange speakers, 1 x 5.25-inch midrange speaker plus 1 x 1-inch tweeter for a custom coaxial centre speaker, 2 x 6.5-inch custom woofers
Amplifier.	12 power amplifiers: 10 x 60 W amplifiers for the centre channel, left, right, top and side outputs, 2 x 100 W amplifiers for the low-frequency outputs. Total: 800 W
Frequency range	28 Hz – 23,000 Hz
Advanced sound features.	Integrated 7.1.4 Dolby Atmos decoding and post-processing with individual settings using the proprietary True Image upmixing and downmixing algorithm. Advanced bass management system. Adaptive bass linearisation. Thermal protection.
RoomSense	Automatic speaker setup with an external microphone: speaker level and distance, speaker role, speaker position compensation across 30–10,000 Hz, room resonance compensation across 30–200 Hz.
HDMI sound format.	Dolby Atmos support: Dolby Digital TrueHD, Dolby Digital plus 7.1 (including DD5.1), Dolby Atmos, Dolby MAT, multichannel PCM 7.1, MPEG-2 AAC, MPEG-4 HE-AAC.
Customisable sound equaliser	Presets are available, with full customisation through the Bang & Olufsen app.

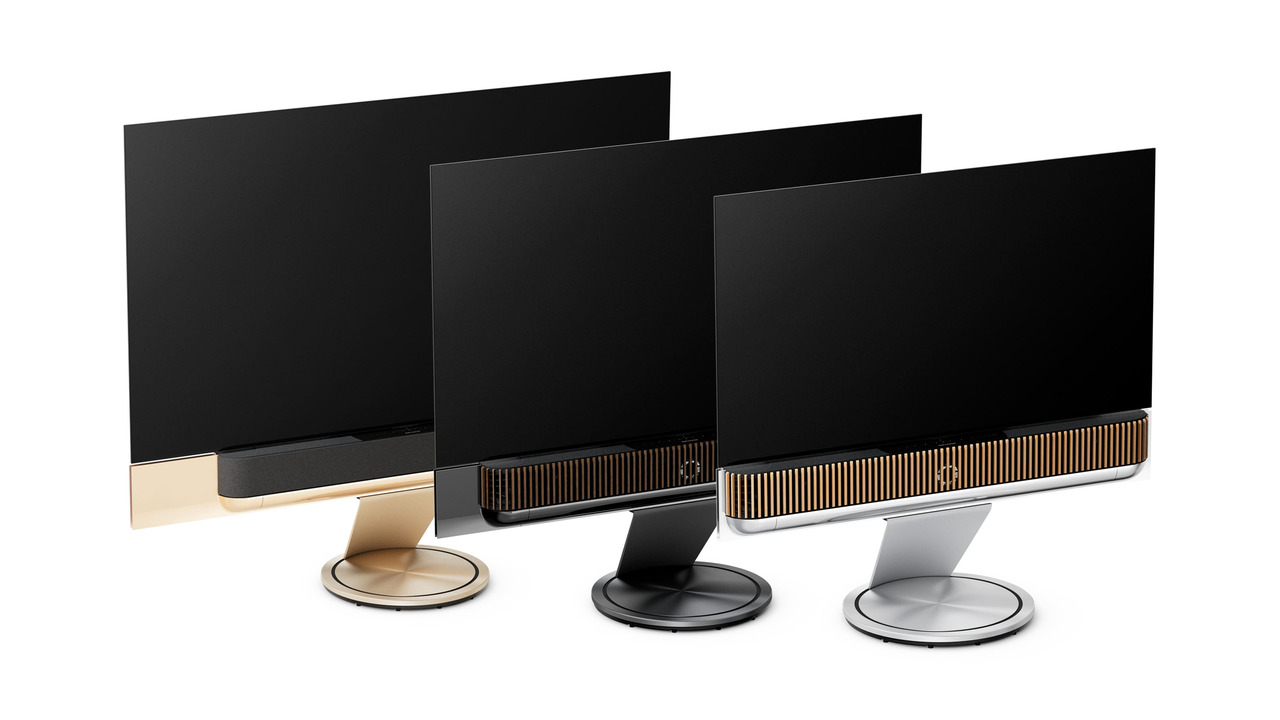

Available screen sizes.	55", 65", 77"
Display type and resolution	4K OLED, 3840 x 2160, more than 8 million pixels.
HDR	HDR 10, HDR 10 Pro, HLG, Dolby Vision IQ
Gaming mode	Response time < 1 ms. Input lag 12.8 ms. VRR, G-sync and FreeSync™ compatibility. ALLM. HFR for 4K and 2K. HGiG mode.
Smart TV.	webOS

Design

Designer	Noto GmbH
Materials	Aluminium, wood / fabric, fabric, polymer.
Placement options	Motorised floor stand, rotation +/- 35°. Motorised wall bracket, left or right mounting with a maximum opening angle of 60° (55" or 65" screen). Table stand
Dimensions (cm)	55" Table stand (free-standing/flush to wall): 122.2 (W) x 35.9/26.5 (D) x 91.9 (H) cm. Motorised wall bracket: 122.2 (W) x 19.2 (D) x 95.9 (H) cm. Motorised floor stand: 122.2 (W) x 52.8 (D) x 118.9 (H) cm. 65" Table stand (free-standing/flush to wall): 144.1 (W) x 35.9/26.5 (D) x 104.3 (H) cm. Motorised wall bracket: 144.1 (W) x 19.2 (D) x 108.3 (H) cm. Motorised floor stand: 144.1 (W) x 52.8 (D) x 131.3 (H) cm. 77" Table stand (free-standing/flush to wall): 171.2 (W) x 35.9/26.5 (D) x 120.5 (H) cm. Motorised floor stand: 171.2 (W) x 52.8 (D) x 147.4 (H) cm. *Television screen height and width may vary depending on the television model.
Weight	55" Table stand, including LG G3 television: 49 kg. Motorised wall bracket, including LG G3 television: 62 kg. Motorised floor stand, including LG G3 television: 69 kg. 65" Table stand, including LG G3 television: 53 kg. Motorised wall bracket, including LG G3 television: 68 kg. Motorised floor stand, including LG G3 television: 73 kg. 77" Table stand, including LG G3 television: 66 kg. Motorised floor stand, including LG G3 television: 87 kg.

Power

Power consumption	Typical: 120 W (soundbar)
Power supply	100–240 V, 50/60 Hz mains cable
Energy efficiency class	G

Connectivity

Bluetooth version	Bluetooth 5.1 (BLE and EDR)
Bluetooth codecs	Android: SBC; iOS: AAC, SBC.
Wi-Fi	Dual-band Wi-Fi 5 (2.4 and 5 GHz), IEEE 802.11 b/g/a/n/ac.
Streaming services.	Apple AirPlay, Spotify Connect, UPnP, Google Cast, TIDAL Connect, B&O Radio, Deezer, QPlay 2.0.
Beolink Multiroom	Connect multiple Bang & Olufsen speakers to expand your music experience.
Beolink Surround	Enjoy true surround sound by connecting additional speakers to your system through a wired or wireless connection.
Wireless connections	8 x Wireless Power Link/WiSA, 4 x Digital Power Link (wireless or wired, Bang & Olufsen speakers based on the Mozart platform).
Physical connections	Soundbar inputs: 3 x HDMI inputs with CEC input, 1 x HDMI eARC with 4K 120FPS / 8K 60FPS / 40 Gbps pass-through, 4 x 1 Gbps Ethernet (one port connects an LG OLED television for integrated control through Beoremote One and the Bang & Olufsen app), 1 x 3.5 mm jack, 1 x USB-C. Soundbar outputs: 8 x Power Link (RJ45), 4 x Digital Power Link (wireless or wired, Bang & Olufsen speakers based on the Mozart platform).
Remote controls	Integrated system control, including the LG OLED TV: Bang & Olufsen app, Beoremote One BT, Beoremote Halo.
On-device controls	Yes
Peripheral device control	Built-in peripheral device/set-top box controller for controlling two devices, allowing set-top boxes to be controlled with a Bang & Olufsen remote control.
